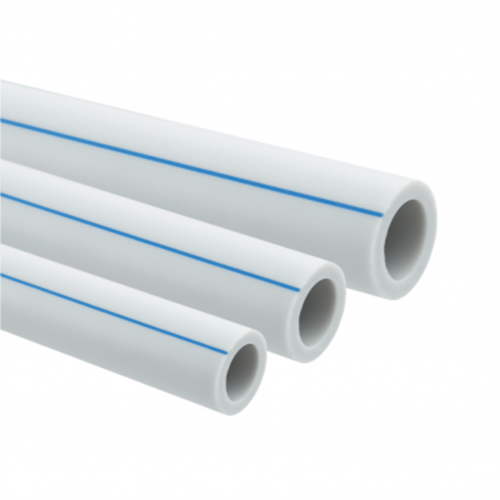

PPRC PIPES
“PARTHIV” PPR Plumbing & Industrial Piping Systems have superior characteristics to withstand working temperatures up to 100°C along with excellent chemical resistance as well as providing a definite solution to oxidation and calcification. Therefore, PPR is an ideal material for hot & cold-water plumbing systems in buildings & Industrial piping installation ensuring high quality performance.
- Pipes :- 16 to 200 mm Single layer & Triple layer
- Fittings :- 20 to 200 mm
- Coil Pipe :- 16 & 110 mm
Proven hot & cold-water performance from -0°C to 100°C.
No scaling. Can withstand higher pH values.
UV resistant triple layered pipes are suitable for outdoor installations that are exposed to direct sunlight.
Good chemical resistance - suitable for most industrial liquids.
Heat-fusion jointing results in homogenous plastic system ensuring leak-proof joints.
Very less coefficient of friction, ensures high flow properties, reduce pumping cost.
Antimicrobial inside layer of 3 layered pipe adds to safety against bacterial growth ensuring safe drinking water.
Specially formulated Thermax pipe reduce linear expansion / contraction of pipes due to temperature variance, ensuring suitability for outdoor application.
Application Note : Insulation is necessary at sub-zero temperature.
APPLICATION
Indoor & outdoor installations of hot & cold-water piping systems in residential, commercial & buildings.
Heating system inside buildings including floor, wall & radiator heating.
Drinking water & liquid food transportation.
Solar water heating systems.
Aggressive Chemicals & Pharmaceuticals Piping systems for conveyance of aggressive fluids in Industries.
| Nominal Size (Outside Diameter) |
Wall Thickness | ||
| SDR 11 (PN 10) | SDR 7.4 (PN 16) | SDR 6 (PN 20) | |
| (mm) | (mm) | (mm) | (mm) |
| 20 | 1.90 | 2.80 | 3.40 |
| 25 | 2.30 | 3.50 | 4.20 |
| 32 | 2.90 | 4.40 | 5.40 |
| 40 | 3.70 | 5.50 | 6.70 |
| 50 | 4.60 | 6.90 | 8.30 |
| 63 | 5.80 | 8.60 | 10.50 |
| 75 | 6.80 | 10.30 | 12.50 |
| 90 | 8.20 | 12.30 | 15.00 |
| 110 | 10.00 | 15.10 | 18.30 |
| 125 | 11.40 | 17.10 | 20.80 |
| 140 | 12.70 | 19.20 | 23.30 |
| 160 | 14.60 | 21.90 | 26.60 |
| 200 | 18.20 | 27.40 | 33.20 |
